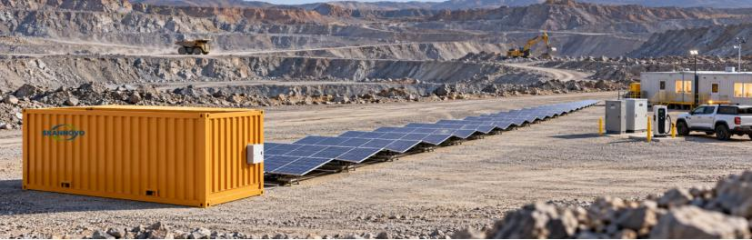

Mobile Solar Station

Portable solar generation for temporary and remote operations

Skannovo Mobile Solar Station is a containerized, relocatable solar system designed for rapid deployment and folding. It supports grid-connected and off-grid applications, including construction sites, emergency power, temporary events and remote operations.


Product features

Portable system  Integrated container format for transport and relocation.

Rapid deployment and folding  Powered setup and takedown to reduce on-site installation work.

Flexible operation  Suitable for on-grid and off-grid power applications.

Robust structure  Designed for varying environmental conditions and frequent transportation.

Modular scalability  Configurations can be selected or expanded to suit project power requirements.


Product models


Specification

46 kWp

72 kWp

91 kWp

Solar panel total power

46.64 kWp

72.08 kWp

91.16 kWp

Solar panel dimensions

1960 x 1134 x 30 mm

1960 x 1134 x 30 mm

1960 x 1134 x 30 mm

Solar panel power

530 W

530 W

530 W

Solar panel setup

22 x 4

34 x 4

43 x 4

Unfolded dimensions

42 x 6 x 2.9 m

65 x 6 x 2.9 m

82 x 6 x 2.9 m

Unfolded area

195 m2

302 m2

382 m2

Container dimensions

6060 x 2440 x 2590 mm

6060 x 2440 x 2590 mm

6060 x 2440 x 2590 mm

Guide rail and bracket

Included

Included

Included

Motor and transmission

Included

Included

Included

Inverter

50 kW

75 kW

90 kW

Deployment time

4 working hours

5 working hours

6 working hours
