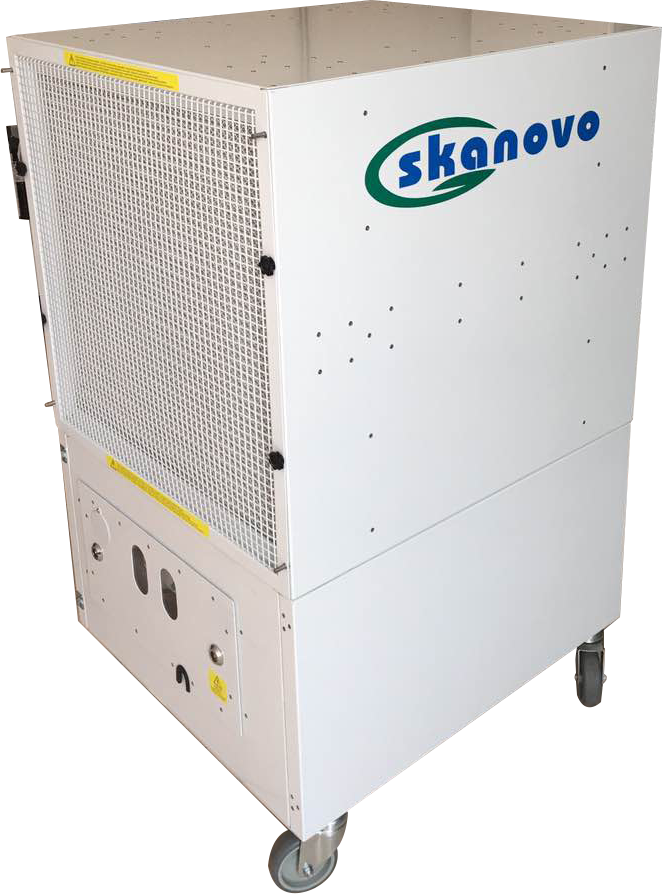

AC3000

AC6000

Power supply: 3 phase 380-480V or 1 phase 220V Rated power: 1,25kW Filter: F7, E11-H13 Fan: EC fan with stepless speed control Capacity: 0-6000 m3/h Connection: 2 standard round (diameter 315mm) or 2 standard round (diameter 250mm) with sound reduction Installation: Mobile or stationary Dimension: 798x1968x820 mm Weight kg: 130,5 including filters

filter options

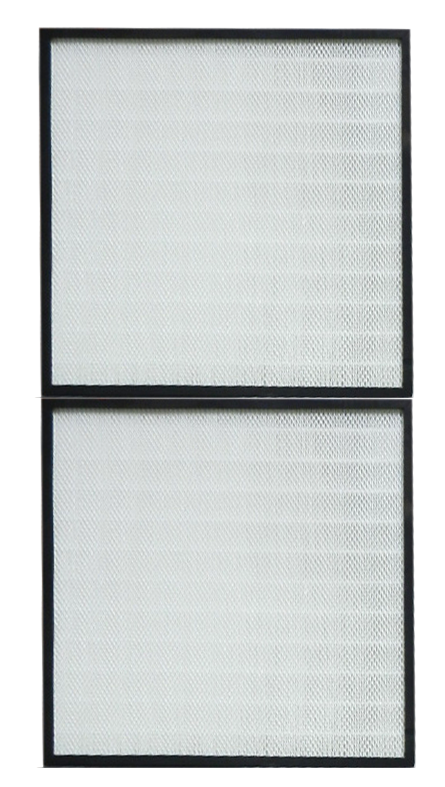

prefilter

F7, 610x610x50mm, 2 pcs on each side, 4 pcs in total

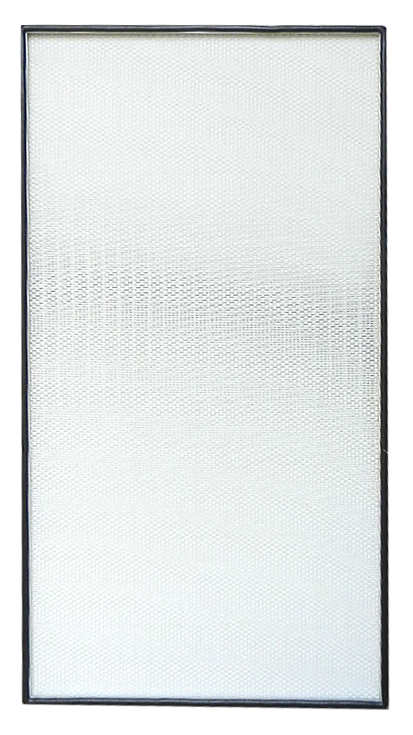

hepa filter

Hepa 11 or Hepa 13, 1220x610x100mm, 1 pc on each side, 2 pcs in total

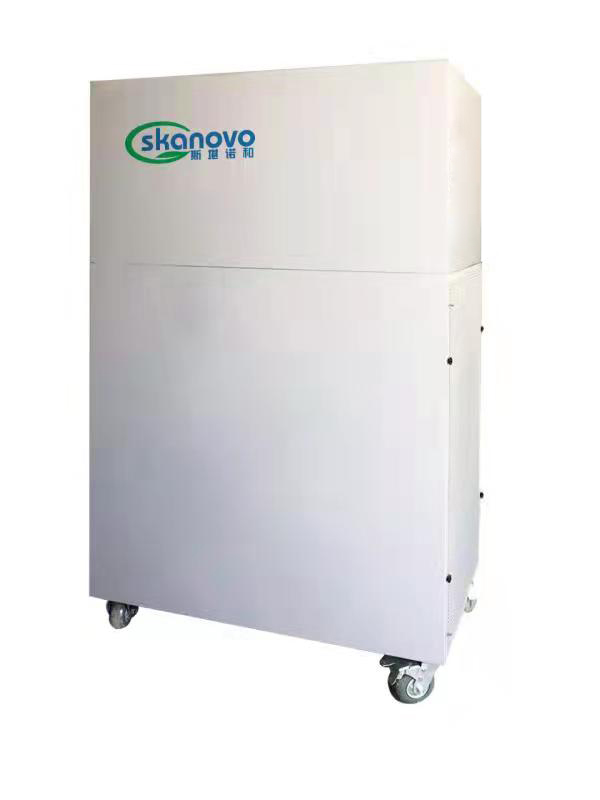

AC18000

Power supply: 3 phase 380V Rated power: 3,5kW Filter: F7, E11-H13 Fan: EC fan with stepless speed control Capacity: 0 – 18 000 m3/h Connection: 2 standard round (diameter 500mm) Installation: Mobile or stationary

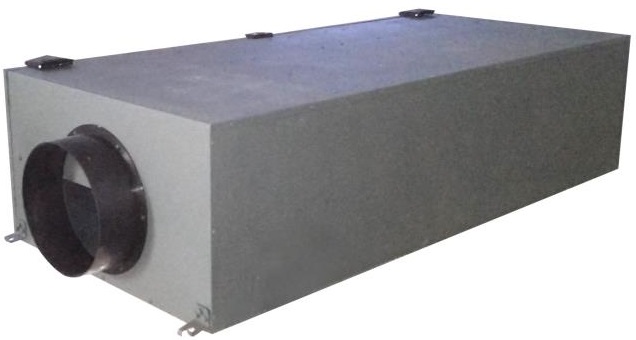

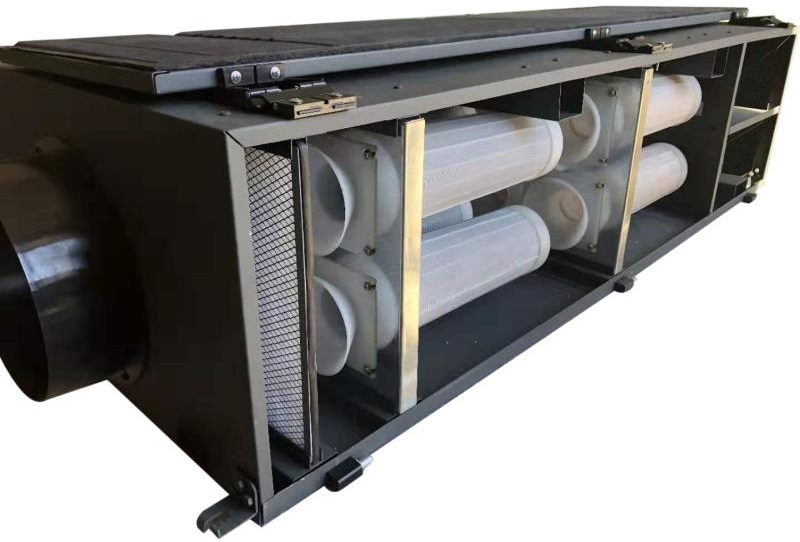

Ceiling mounted Air Cleaner

Depending on the type of air pollutant, different filters are configured in order to remove particulate matter, oil mist, and exhaust gas. The standard air volumes include 1000 m3/h, 3000 m3/h, 6000 m3/h, and 10000 m3/h.

Configured with filtration material such as activated carbon to remove odor.
