Mobile Solar Station

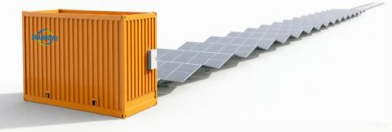

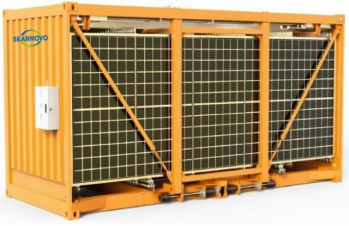

This mobile solar station represents a significant advancement in temporary and relocatable renewable energy, offering a powerful and efficient alternative to traditional installations. It is designed for flexibility and efficiency, with the following core characteristics:

l Portable system: A fully integrated, self-contained unit for easy transport and relocation.

l Rapid deployment and folding: Engineered for quick setup and takedown, minimizing on-site labor and time.

l On-grid and off-grid capable: Versatile operation for both grid-connected applications and remote, off-grid power needs.

l Robust structure: Built to withstand various environmental conditions and frequent transportation.

l Multi-scenario application: Suitable for a wide range of uses, from emergency power and construction sites to temporary events and remote operations.

l High cost-effectiveness: Reduces installation time, labor costs, and infrastructure requirements compared to traditional fixed solar farms.

l Modular scalability: Systems can be expanded or configured to meet specific power demands.





Product models

Model

40kwp

120kwp

160kwp

Solar panel total power

37.8kwp

119.7kwp

157.5kwp

Solar panel power

630w

630

630w

Solar panel numbers

60 pcs

190 pcs

250 pcs

Solar panel dimension

2382x1134x30mm

2382x1134x30mm

2382x1134x30mm

Total unfolded dimension

27*6*2.9m

80*6*2.9m

112*6*2.9m

Total unfolded area

160m2

480m2

675m2

Guide rail and bracket

180m

300m

375m

Container dimension

6060x2440x2890mm

6060x2440x2890mm

6060x2440x2890mm

Motor and transmission

Yes

Yes

Yes

Inverter

40kw

125kw

160kw

System deployment time

1.5 working hours

5 working hours

6 working hours
