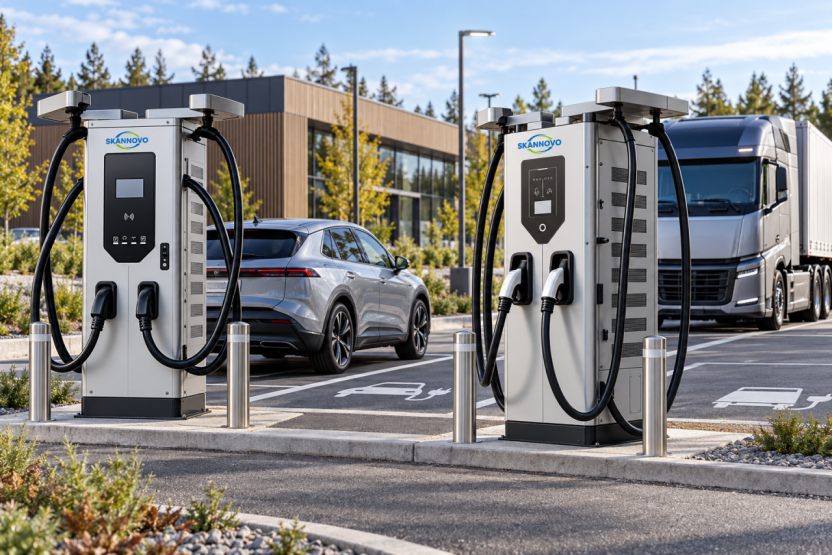

DC Charging station 240~480kW
The fast EV charger connects with AC electric grid and provides an advanced charging solution for electrical vehicles and machineries. It comes with various protection mechanisms to ensure safety in the charging process. It provides 4G and Ethernet connectivity and supports OCPP for easy integration into any charging service operator. A color display provides real-time user-friendly charging information.
Technical spec
Rated power kW | 240~480kW |
Output current | ≤ 250A/300A/400A air cooling, ≤ 600A liquid cooling |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Input connector | 3P+N+PE |
Output voltage | 150~1000VDC |
No of charging connectors | 2 |
Output power per connector | dynamic power sharing and limiting |
Charging connector type | CCS2 |
Installation | Ground-installed |
HMI | 7-inch touch screen |
Charging options | full charge, target energy, target money, target time |
Payment methods | RFID card, QR code, APP |
Network connection | 4G, Ethernet |
Communication protocol | OCPP 1.6J, Modbus/RS485, Modbus/TCP |
Charging standards | IEC 61851-23, ISO 15118-2 |
IP rating | IP54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling≤ 400A; liquid cooling above |
Noise | ≤ 65dB |
Relative humidity | 5% ~ 95% |
Safety and protection | overload protection, short circuit protection, current leakage protection, lightning and surge protection, grounding protection, anti-static protection, over and under voltage protection, over and under temperature protection, emergency stop, insulation control |
Cable management | Cable suspension device on the top |
Payment termianl | Optional |
