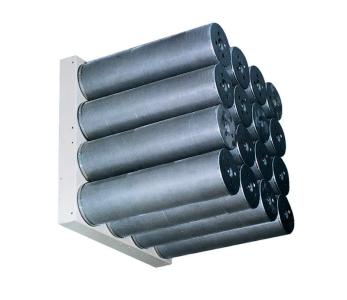

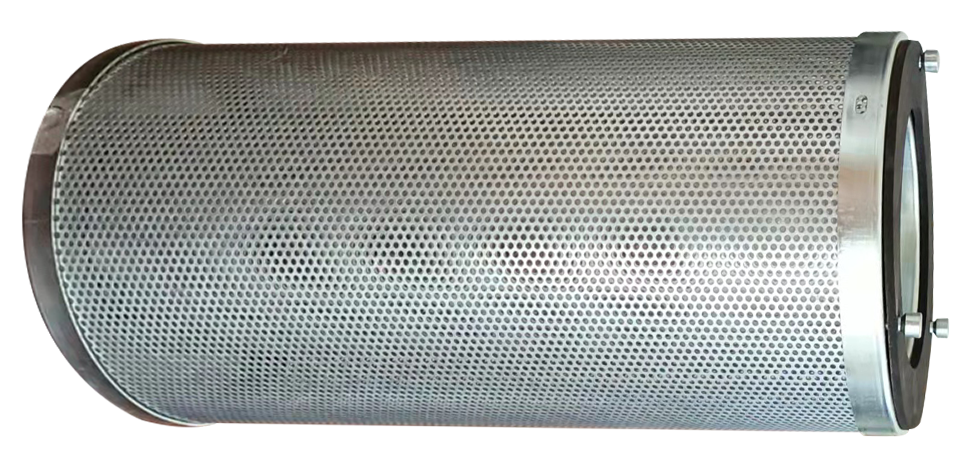

The cartridge filter uses granular activated carbon and a variety of filtration material to eliminate harmful gases and odor in the air, and deal with moderate levels of gas pollution. It has strong adsorption capacity, reliable performance, easy installation and maintenance, and low operating cost.

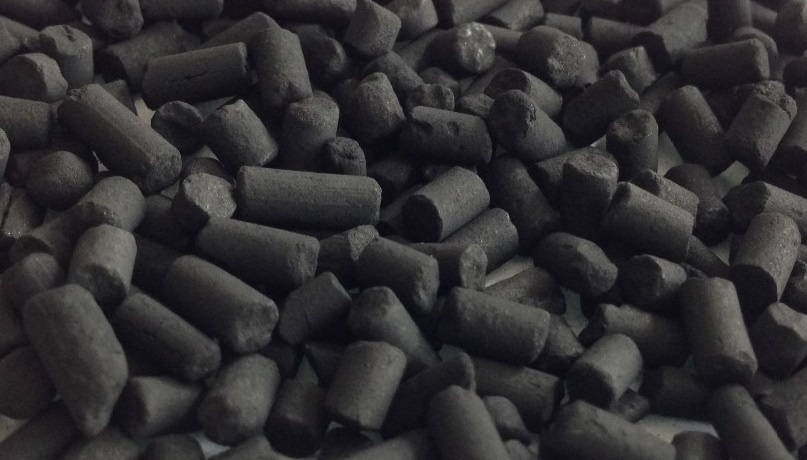

NovoKol is used to filter hydrocarbon gases, volatile organic compounds and nitrogen dioxide in air pollutants. The filtration material contains virgin grade activated carbon, and its large internal surface area makes it highly adsorbent.
Activated carbon pellet | |
density kg/m3 | 400~480 |
Column pellet diameter mm | 3.0 |
Water content | 5% |
Hardness | 98% |
Saturation for VOC removal | 33% |
Air velocity m/s | 0.3~2.5 |
Humidity | 10~95% |
Temperature | -20~51°C |
Target air pollutants: it has a general adsorption capacity for various gases, especially suitable for hydrocarbons and VOCs.

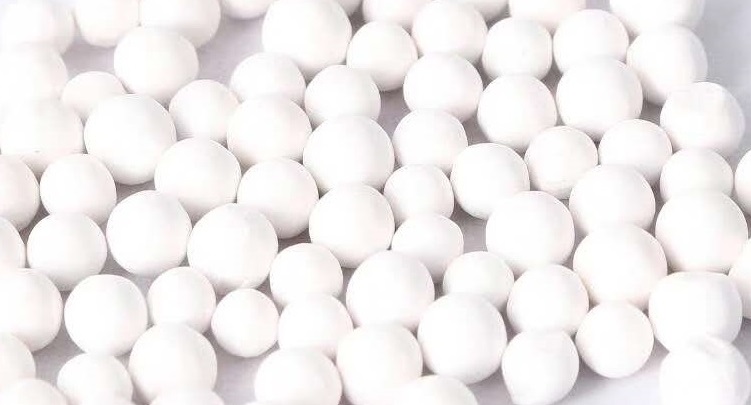

The impregnated alumina particles are specifically used to remove gaseous halogens from the air flow. Chlorine, bromine and iodine are captured by internal adsorption and absorption. Their highly porous structure is made from oxidative impregnated active materials. The filtration material is highly effective over a long service life.
Impregnated alumina pellet | |
density kg/m3 | 800 |
Pellet diameter mm | 3.8 |
Water content | 15% |
Minimum crush strengh kg | 2 |
Saturation of CL2 removal | 15% |
Air velocity m/s | 0.3~2.8 |
Humidity | 10~95% |
temperature | -20~54°C |
Target air pollutants: Cl2

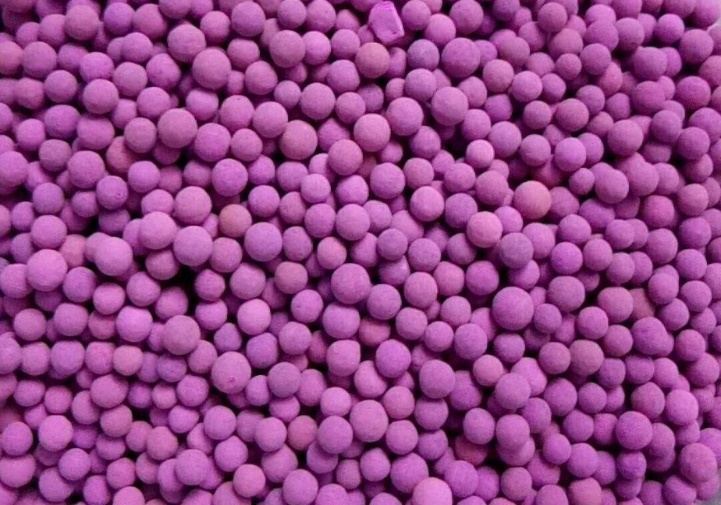

NovoAlukmn pellets are used to prevent corrosion caused by acid gases. They remove polluting gases by adsorption, absorption and chemisorption. It contains a certain proportion of potassium permanganate, evenly distributed in the pores, and can permanently eliminate pollutants by oxidation reaction with inactive solids.
NovoAlukmn Pellet | |
density kg/m3 | 800 |
Pellet diameter mm | 3.8 |
Water content | 20% |
Minimum crush strength kg | 2 |
Saturation of H2S removal | 15% |
Saturation of SO2 removal | 10% |
Air velocity m/s | 0.3~2.5 |
Humidity | 10~95% |
temperature | -20~51°C |
Target air pollutants: H2S, SO2, NOx

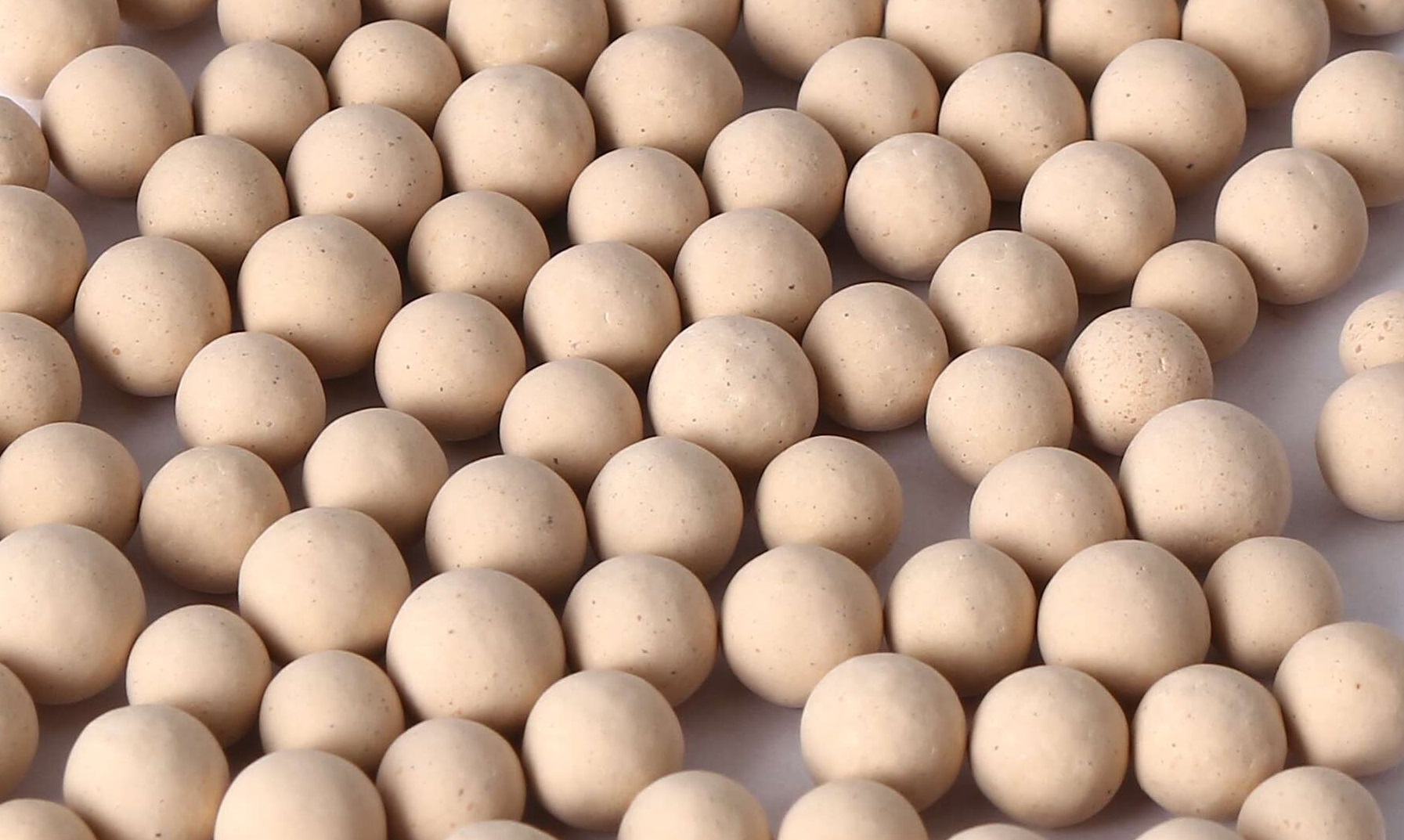

NovoZeolite zeolite particles are specifically used to remove gaseous ammonia from the air flow. They capture ammonia by adsorption and absorption within the zeolite structure. A high internal surface provides good removal over a long life.
Zeolite pellet | |
density kg/m3 | 900 |
diameter mm | 3.8 |
Minimum crush strength kg | 3 |
Saturation of ammonia removal | 10% |
Air velocity m/s | 0.3~2.7 |
humidity | 10~95% |
temperature | -20~53°C |
Target air pollutants: ammonia NH3
