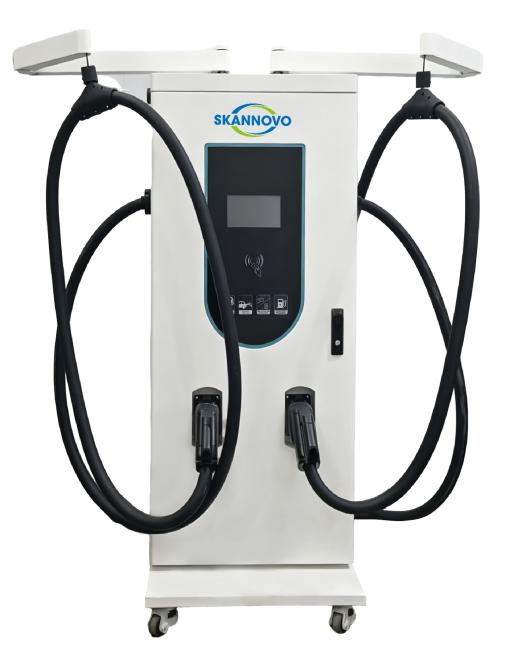

A charging aggregate combines the charging station and the energy storage and integrates them into a single unit. It recognizes the fact that the charging station is not charging all the time and utlizes the time for charging the battery instead with power supply from the grid. In this way you are able to unload the energy from the battery energy storage at a high speed into the electric vehicles and machineries. You are able to provision the power supply from the grid much lower. Therefore the existing power connection with the grid do not need to be upgraded therefore saving investment for the owner of the charging station.

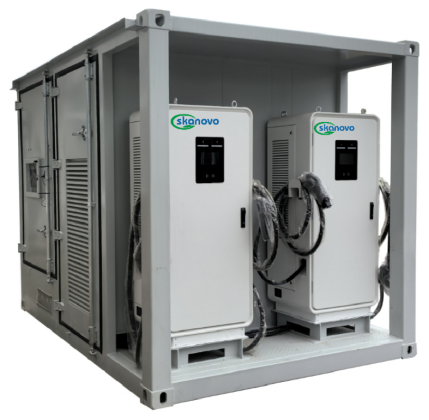

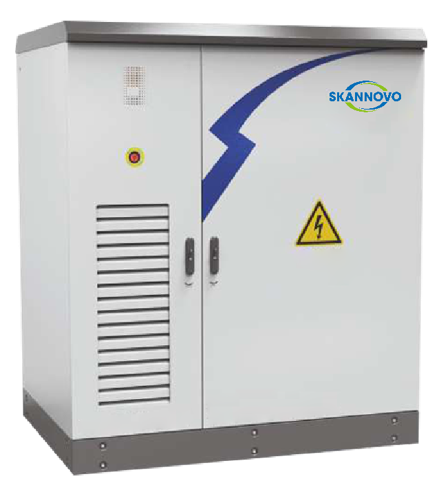

The charging aggregate is in the form of a container. It is free of installation with strong protective enclosure and good mobility. It is easier to move around with a fork lift or a crane, and gives strong protection against any possible collision.

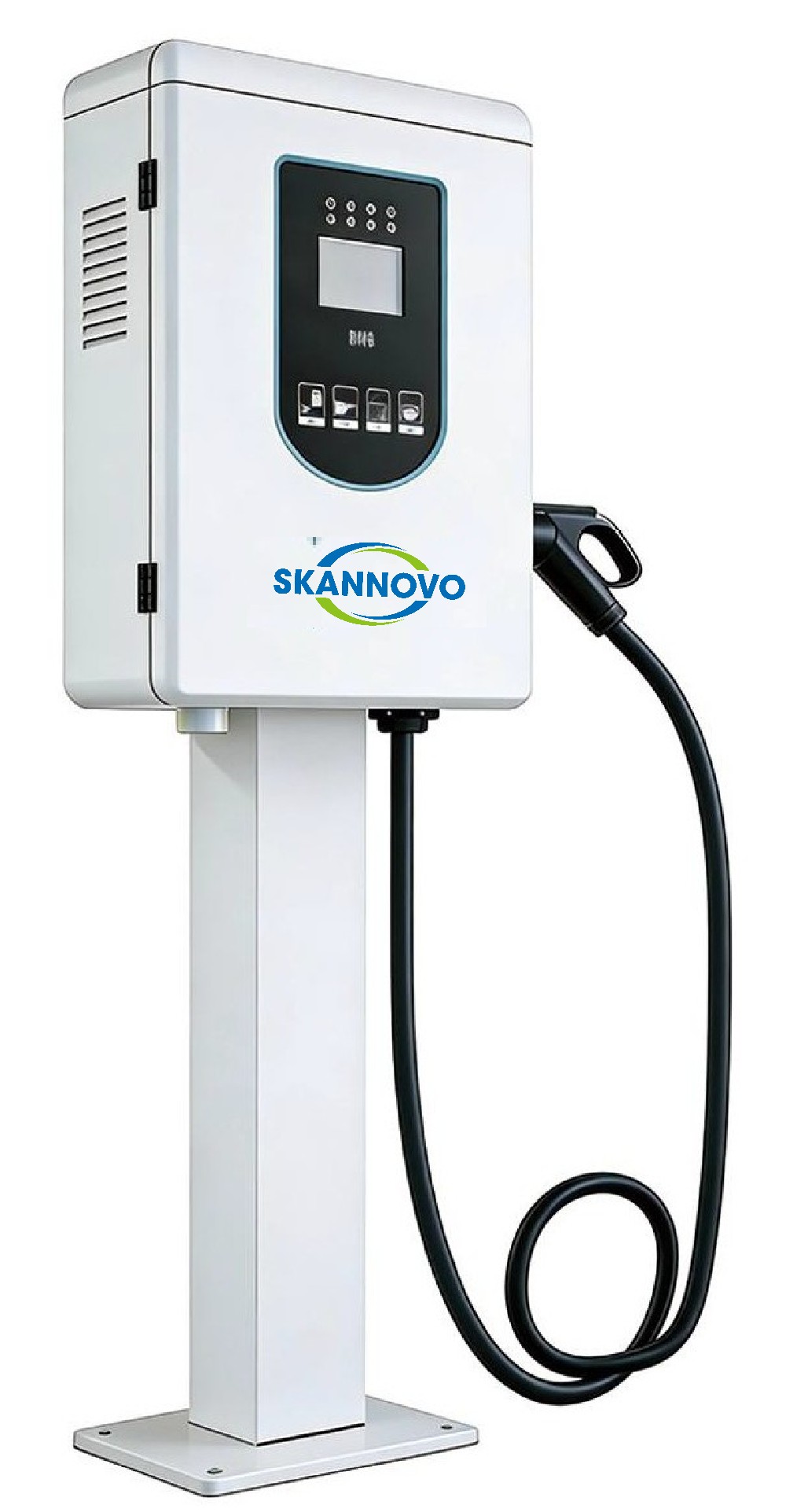

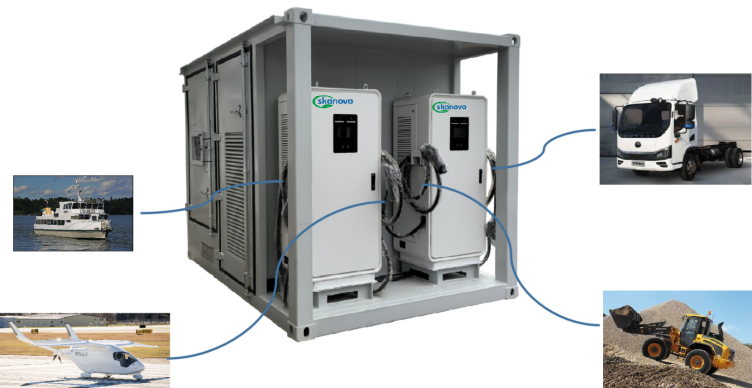

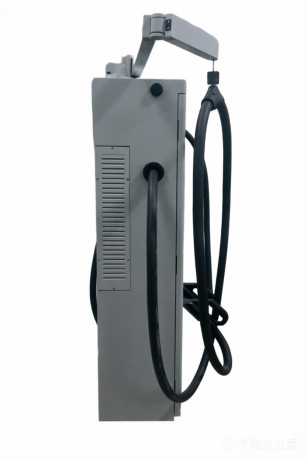

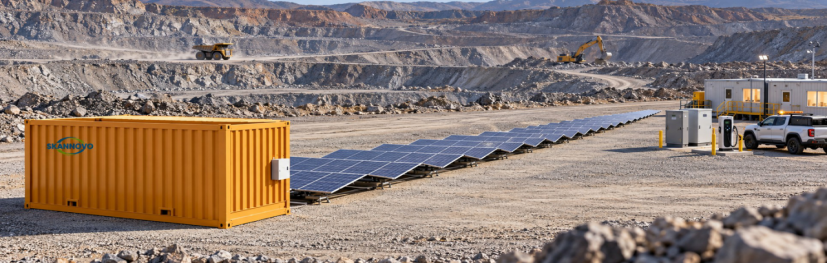

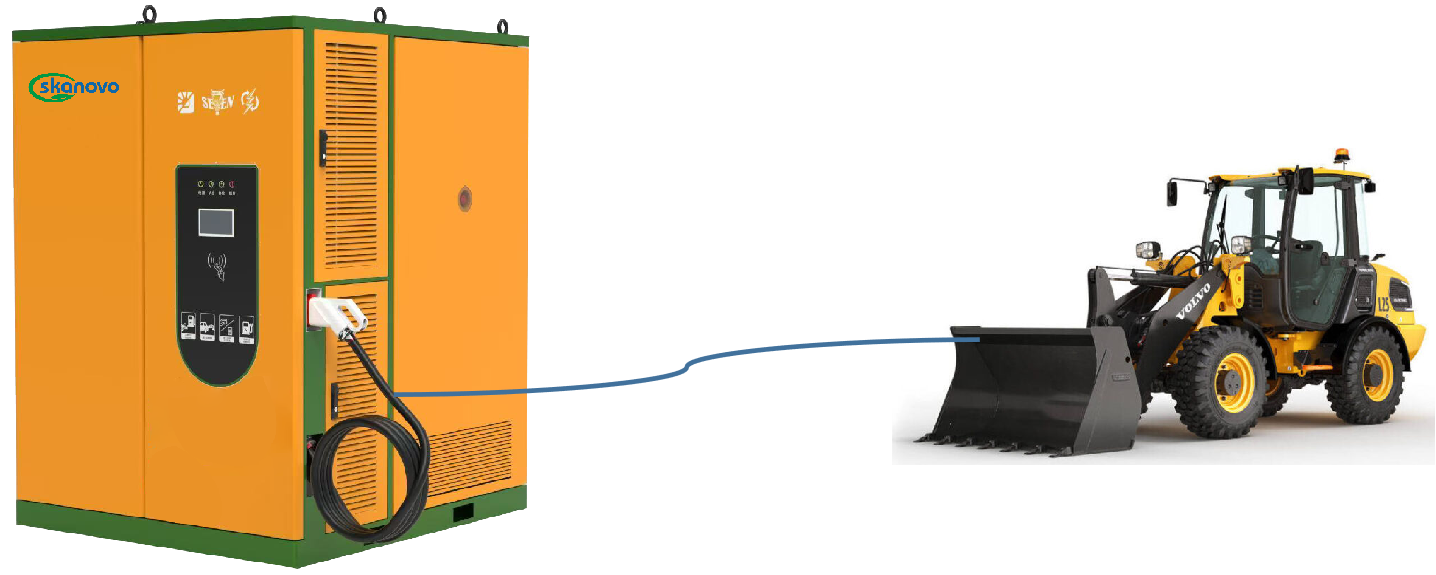

Application scenario
Connection diagram
The EMS needs to configure the AC and DC buses so that whenever the charging stations are not connected, the grid is available to charge the battery. As soon as the charging stations are connected for charging, the grid should be prioritized to allocate resources for the charging stations, instead of charging the battery. In this way the charging stations are guaranteed with the power from the grid. There are other factors such as the electricity price variation from the grid so that the battery should be charged when the electricity price is low at night and the battery should be charging when electricity is expensive at peak time.

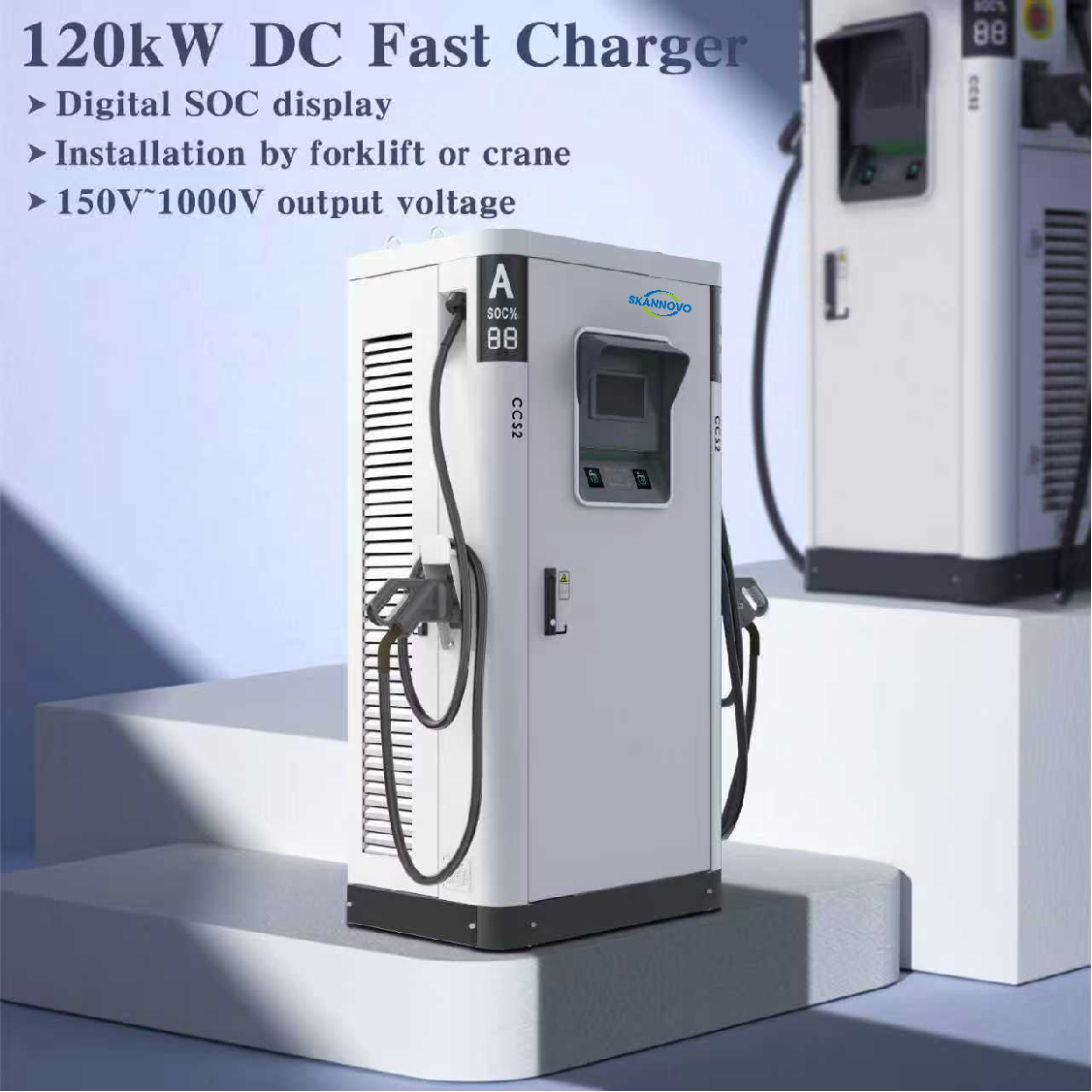

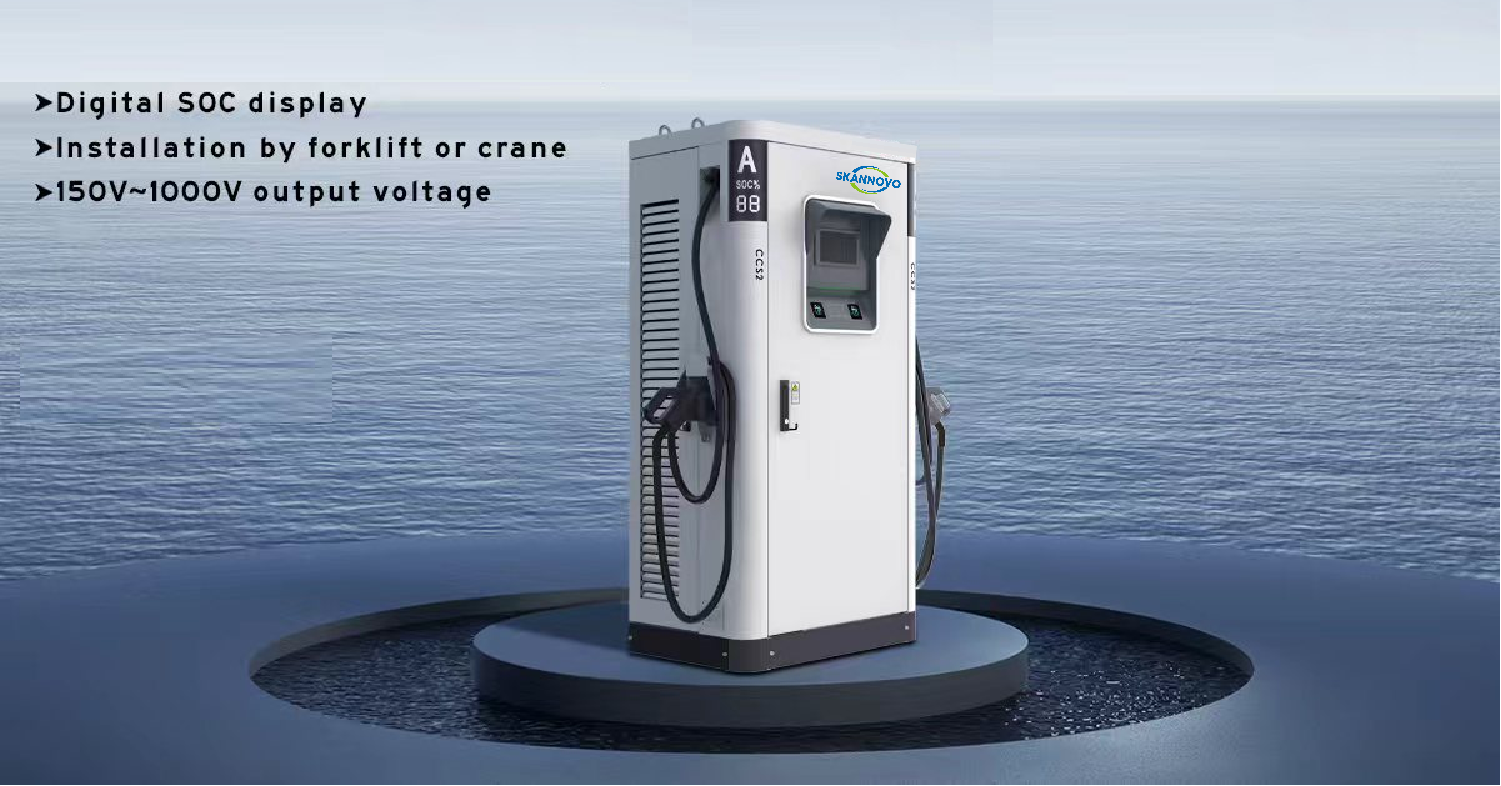

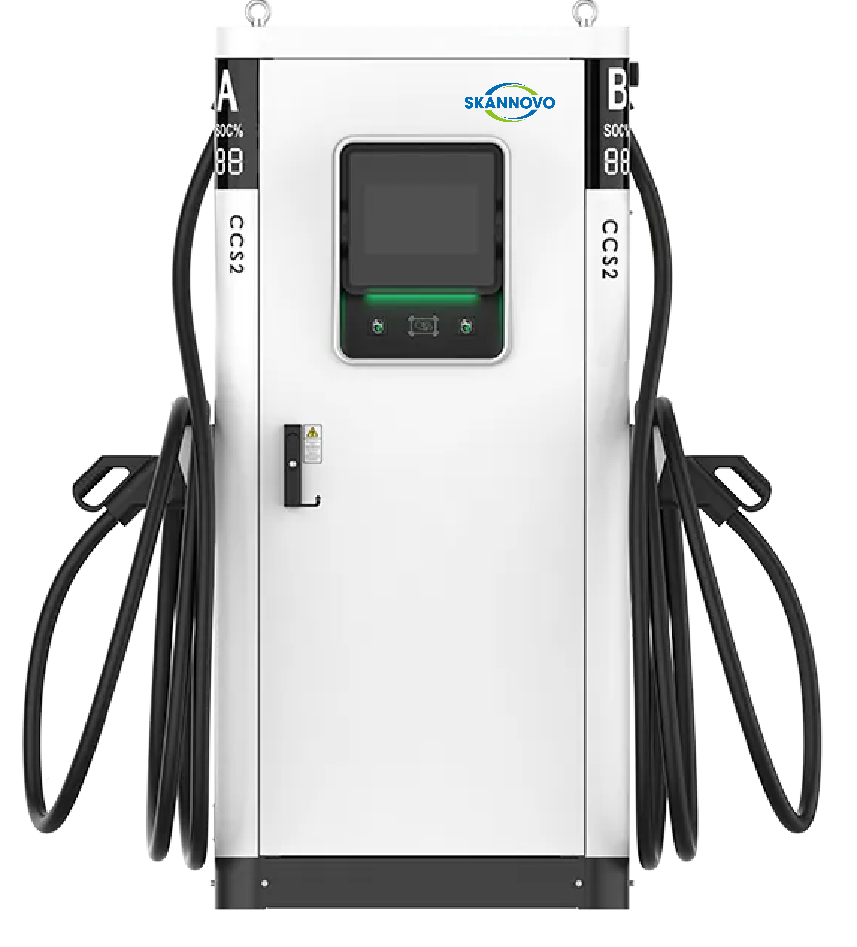

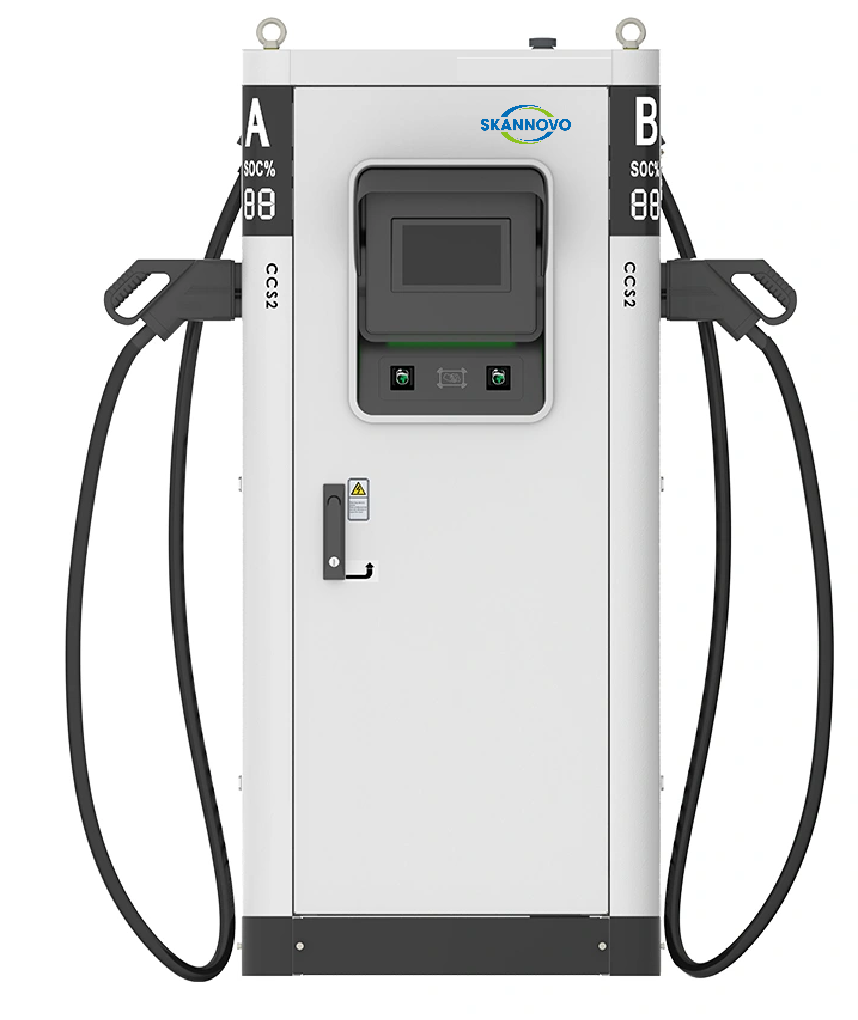

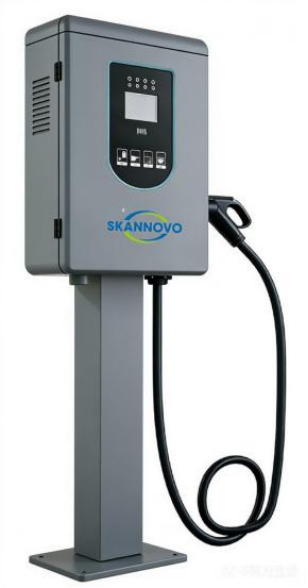

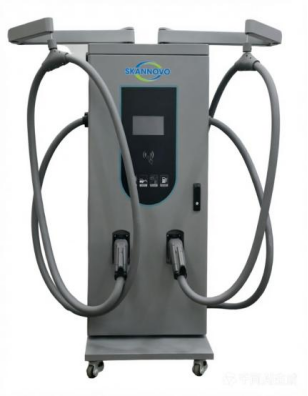

Charging aggregate model c200/120
The charging aggregate model c200/200 has a battery storage capacity of 209kwh, 2 DC charging outlets with total rated power 200kw. An AC charging station can be integrated as an option upon request. The power supply from the grid is recommended to be at least 30kw.
Battery capacity | 208kwh |
Rated power kw | 120kw |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Output voltage for DC | 150~1000VDC |
No of charging outlets | 2 |
Cable length | 5 meter |
Charging connector type | CCS2 |
Installation | Ground installed |
HMI | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time |
Payment method | Swipe card, scan code, APP, password, VIN code |
Network connection | 4G, Wi-Fi, Ethernet |
Communication protocol | OCPP 1.6J |
IP rating | IP 55 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 50 dB |
Relative humidity | 5% ~ 95% |
Warranty and service | 2 years |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection, grounding protection, lightening surge protection |

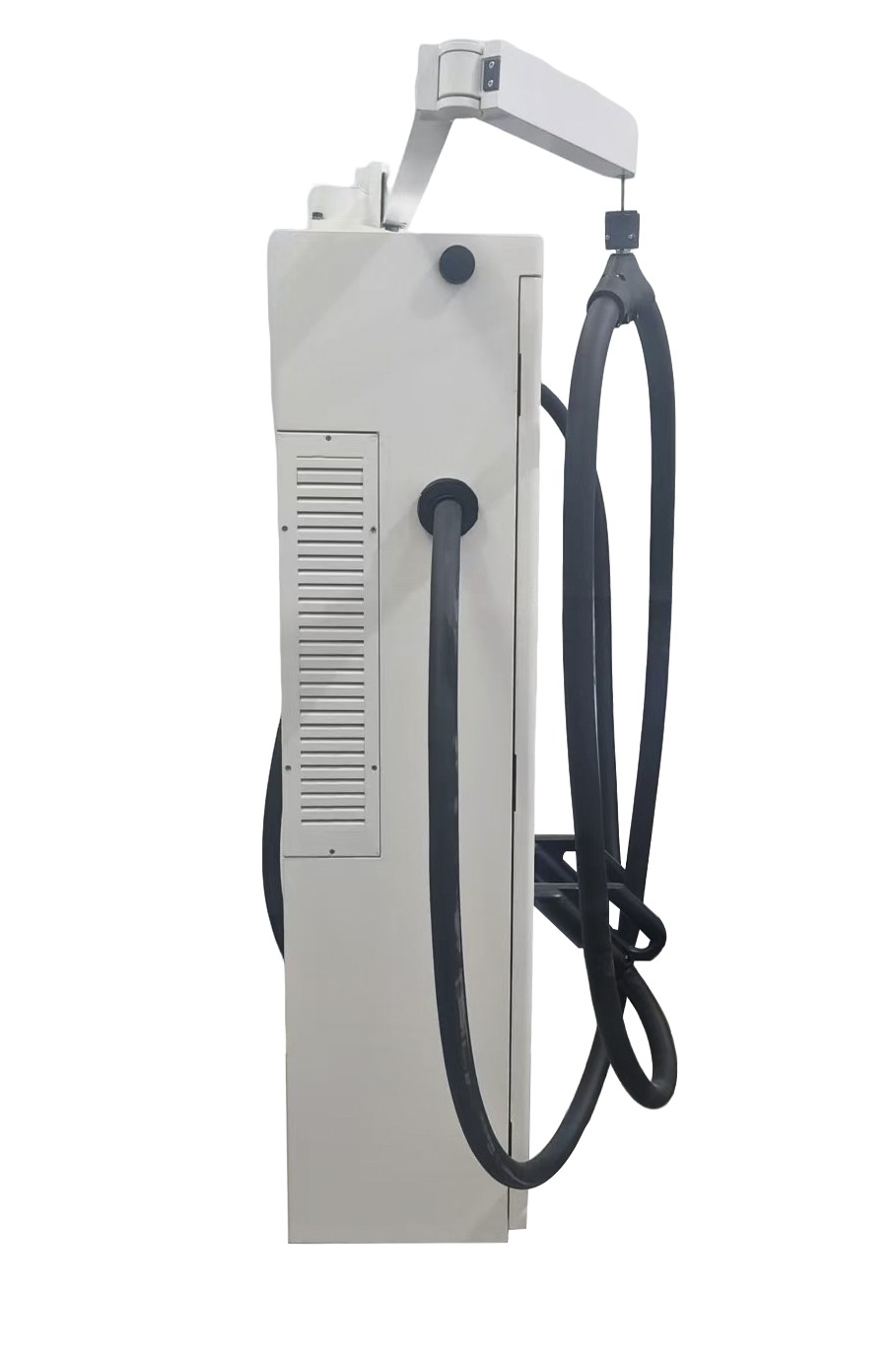

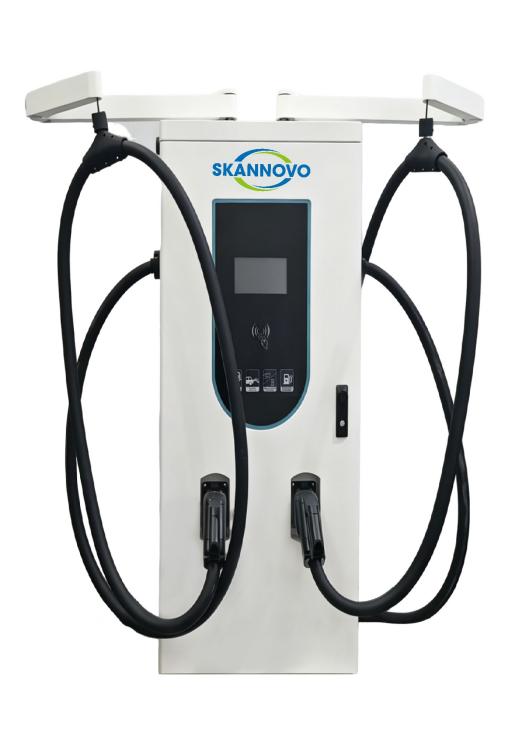

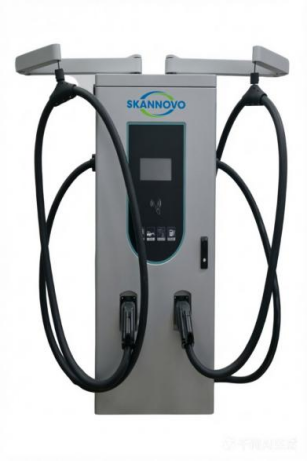

The charging aggregate model c400/240 has a battery storage capacity of 418kwh, 2 DC charging outlets with total rated charging power 240kw. An AC charging station can be integrated as an option upon request. The power supply from the grid is recommended to be at least 60kw.
Battery capacity | 416kwh |
Rated power kw | 240kw |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Output voltage for AC | 3~ 400VAC |
Output voltage for DC | 150~1000VDC |
No of charging outlets | 2, 2 |
Cable length | 5 meter |
Charging connector type | CCS2, Type 2 |
Installation | Ground installed |
HMI | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time |
Payment method | Swipe card, scan code, APP, password, VIN code |
Network connection | 4G, Wi-Fi, Ethernet |
Communication protocol | OCPP 1.6J |
IP rating | IP 55 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 50 dB |
Relative humidity | 5% ~ 95% |
Warranty and service | 2 years |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection, grounding protection, lightening surge protection |
