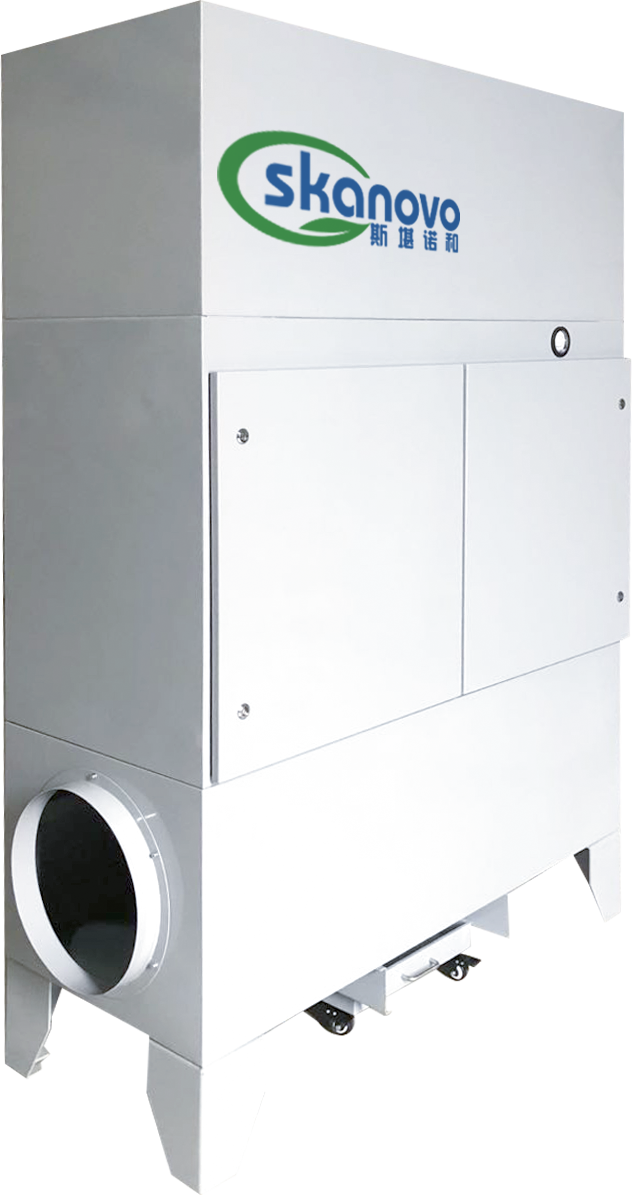

In the process of mechanical forming and machining processes, including stamping, bending, casting, and drilling, cutting, grinding, oil or concentrated cutting fluid (emulsion) mixed with water is used to cool, lubricate and chip. These water-insoluble oil mists and water-soluble emulsions will diffuse in the air to form aerosols. From the perspective of production process, fire and explosion protection, and employee health, these pollutants in the air need to be purified. Skanovo oil and mist emission cleaner OEC product series uses a woven mesh filtration solution and can be used for high efficiency and precision filtration. The multi-stage separation process is based on the overall effect of mass inertia, high surface mass ratio, accumulation, and diffusion.

Models of Mist Emission Cleaner

Model: OEC3000
Power: 1 phase 220V
Rated power: 1,30kW
Capacity: 0-3000 m3/hour
Air intake: Ф290mm
Air output: Ф290mm
dimension: 620x620x1600mm

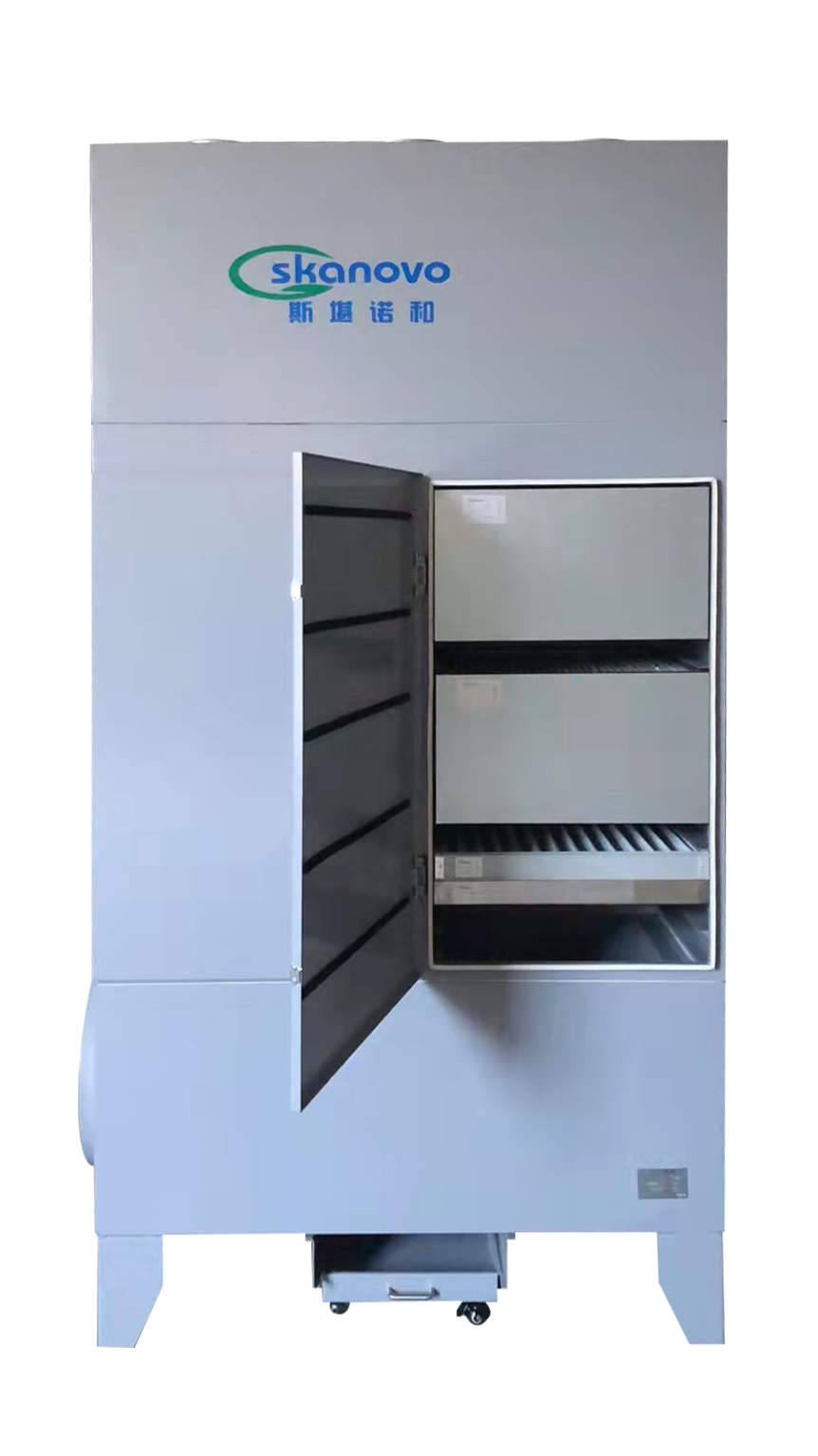

filter configuration: NovoAcc, NovoSep, G4, F7, H13

Model: OEC6000
Power: 3 phase 380~480V
Rated power: 2,5kW
Capacity: 0-6000 m3/hour
Air intake: Ф380mm
Air output: Ф380mm
dimension: 620x1470x2200mm
filter configuration: NovoAcc, NovoSep, G4, F7, H13

Model: OEC15000
Power: 3 phase 380~480V
Rated power: 5,0kW
Capacity: 0-15000 m3/hour
Air intake: Ф500mm
Air output: Ф500mm
dimension: 1240x1470x2200mm
filter configuration: NovoAcc, NovoSep, G4, F7, H13
