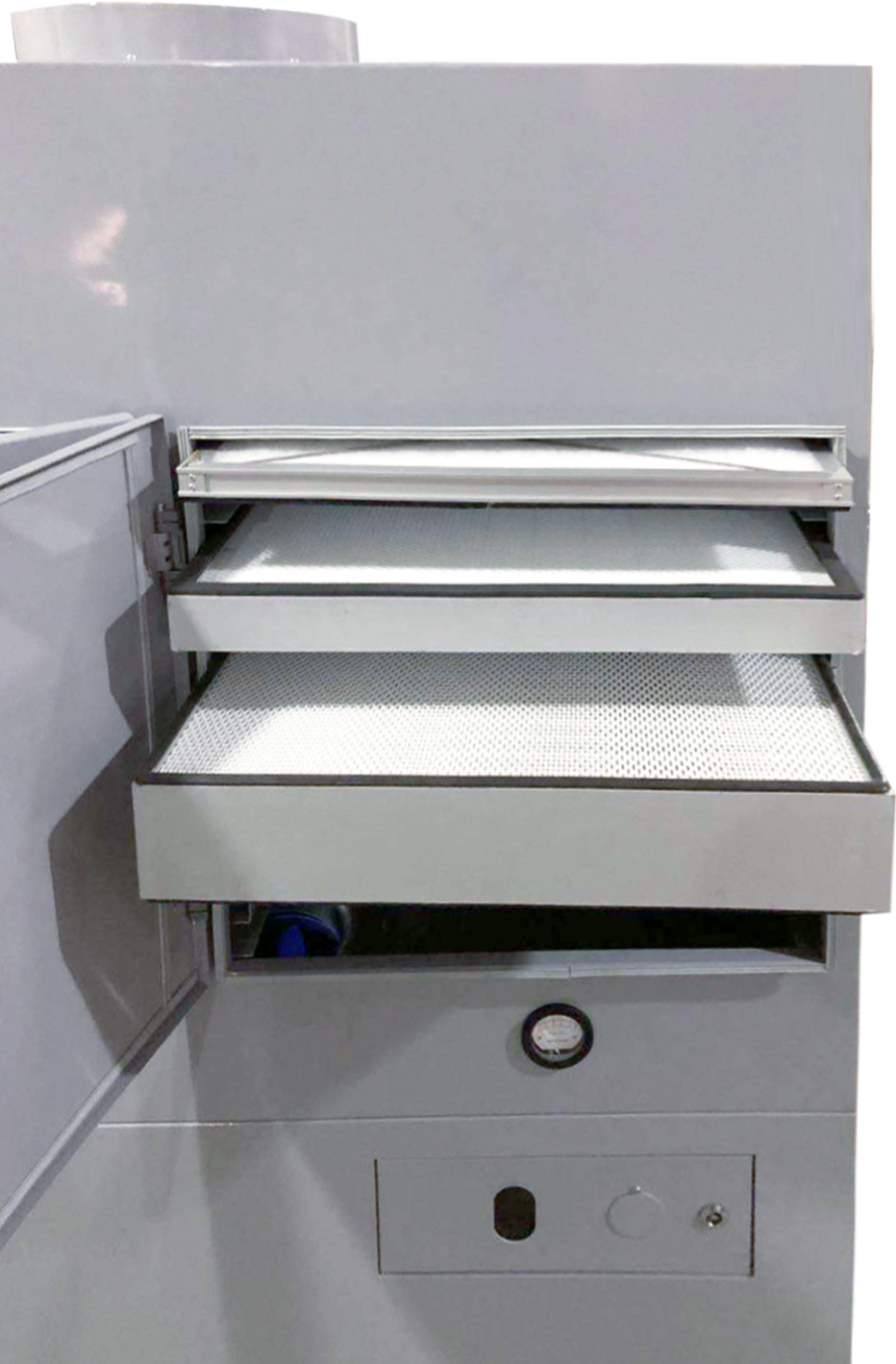

For low and medium level industrial exhaust emissions, including dust, oil mist, and gaseous pollutants, the general-purpose emission treatment equipment uses a plate filter structure. The filter can be configured and combined according to specific applications. For dust and oil mist emission, two layers of G4 can be configured, followed by F7 and H13. For the emission of gaseous pollutants, 3 layers of Skanovo molecular filter NovoKol can be configured, with an additional G4 in the front.

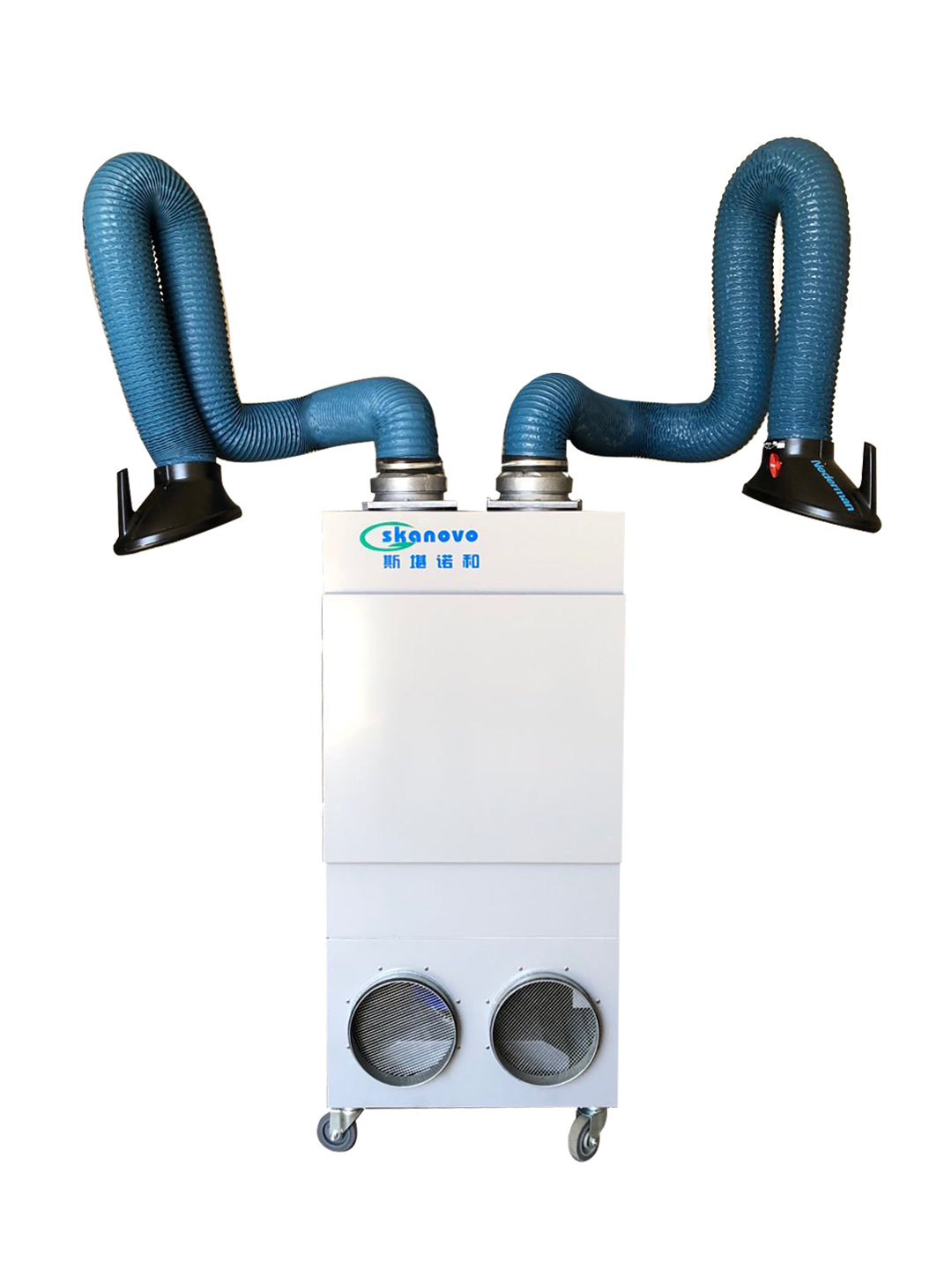

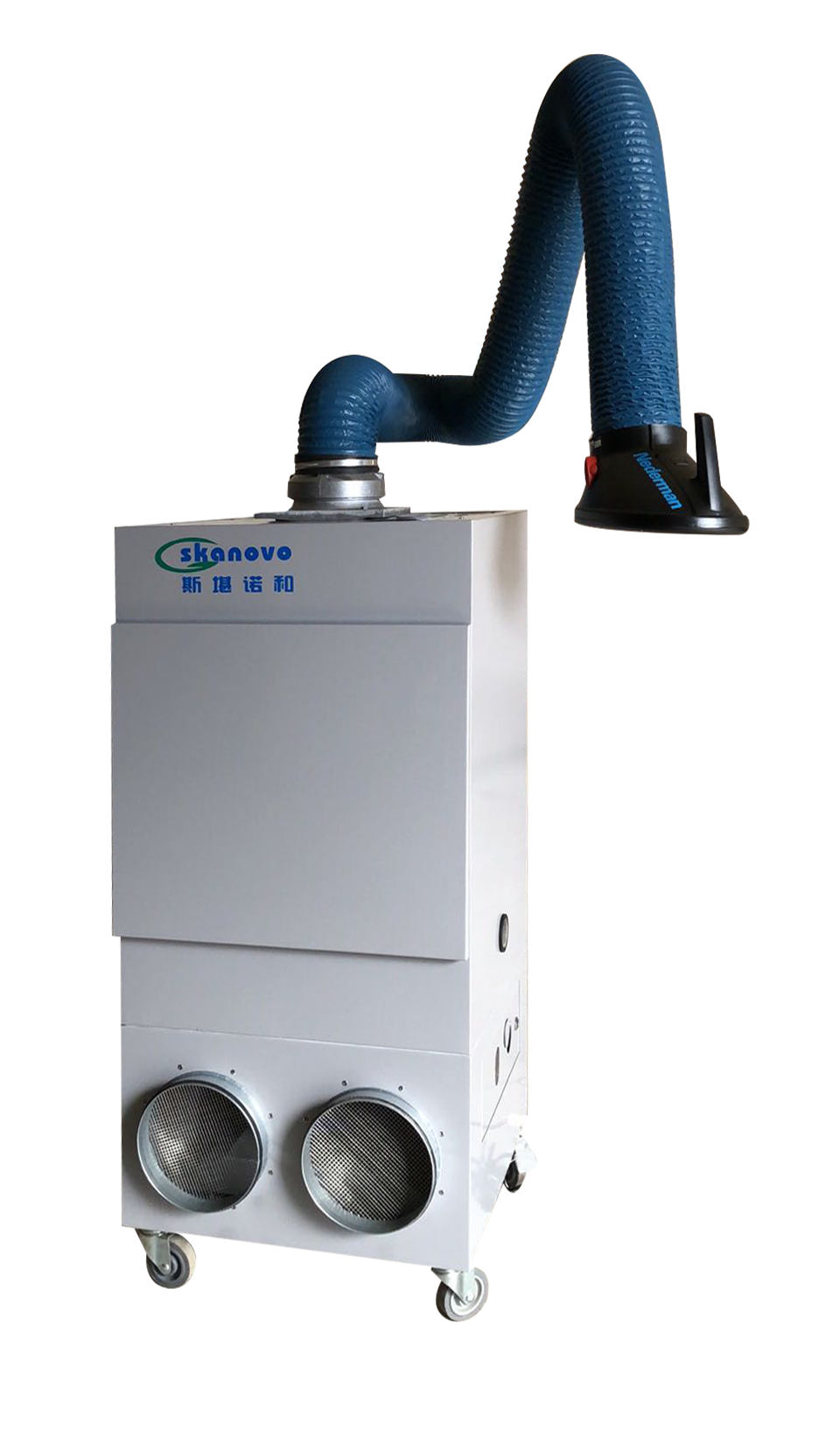

Mobile Emission Cleaner with Sucking Arm

Model: EC2000-L
Power: 1 phase 220V
Rated power: 1,35kW
Capacity: 0-2000 m3/hour
dimension: 650x650x1400mm
filter configuration: G4, F7, H13, Molecular filter

Model: EC4000-2L
Power: 3 phase 380V
Rated power: 2,4kW
Capacity: 0-4000 m3/hour
dimension: 650x650x1800mm
filter configuration: G4, F7, H13, Molecular filter

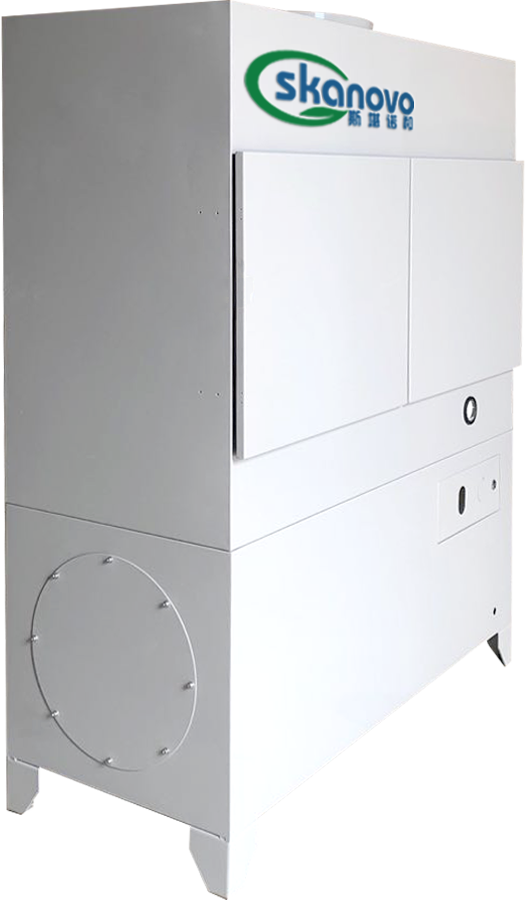

Ducted Emission Cleaner

Model: EC3000
Power: 1 phase 220V
Rated power: 1,30kW
Capacity: 0-3000 m3/hour
Air intake: Ф290mm
Air output: Ф290mm
dimension: 620x620x1600mm
filter configuration: G4, F7, H13, NovoKol

Model: EC6000
Power: 3 phase 380~480V
Rated power: 2,5kW
Capacity: 0-3000 m3/hour
Air intake: Ф380mm
Air output: Ф380mm
dimension: 620x1470x2200mm
filter configuration: G4, F7, H13, NovoKol

Model: EC15000
Power: 3 phase 380~480V
Rated power: 5,0kW
Capacity: 0-15000 m3/hour
Air intake: Ф500mm
Air output: Ф500mm
dimension: 1240x1470x2200mm
filter configuration: G4, F7, H13, NovoKol
