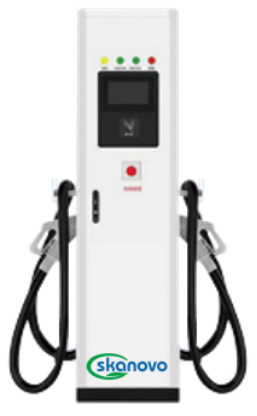

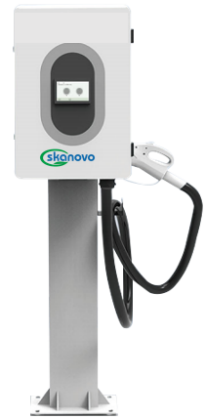

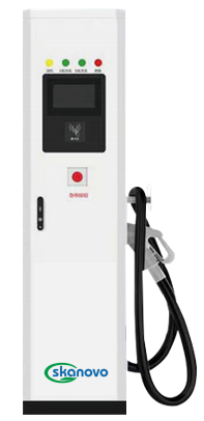

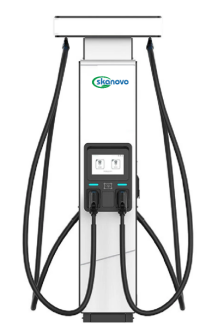

AC Charging Station
The EV charger connects with AC electric grid and provides an advanced charging solution for all kinds of electrical vehicles and trucks and heavy machineries that only accept AC charging. It comes with all kinds of protection mechanisms to ensure safety in the charging process. It provides Wi-Fi and 4G connectivity and supports OCPP for easy integration into any charging service operator. A color display provides real-time user-friendly charging information.
Product model | skn-acxxx |
Rated power kw | 20, 40, 60, 80 |
Input voltage | 3~ 400VAC |
Input frequency | 50/60 Hz |
Output voltage | 3~ 400VAC |
No of charging pistols | 1, 2 |
Output power per pistol | Evenly distributed within, maximum power limiting |
Cable length | 5 meter |
Charging connector type | Type 2 |
Installation | Ground installed, wall or column mounted |
HMI | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time |
Payment method | Payment terminal, RFID card, Scan code, APP, VIN code |
Network connection | 4G, Wi-Fi, Ethernet |
Communication protocol | OCPP 1.6J |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | Air cooling |
Noise | ≤ 50 dB |
Relative humidity | 5% ~ 95% |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection, grounding protection, lightning surge protection |
Other features | Automatic load balancing between charging pistols, Visualized charging progress display, Anti-corrosion galvalume housing |
Dimension | 500*350*130mm(20, 40), 750*550*1700mm(60, 80) |
User option | Charging pistol placement on the front side, Charging cable top hanging |
