Our mobile charging aggregate combines the charging station and the battery energy storage and integrates them into a single unit. It has a light weight and a compact size, and specifically designed and customized according to the Swedish traffic regulation to fit into a mobile usage. It is made for the Nordic weather conditions with very good corrosion protection. It is easier to move around with a fork lift or a crane, and gives strong protection against any possible collision. It is free of installation with good mobility.
When the mobile charging aggregate is being used for charging when it is connected to the power grid, it can help you to get a power output much bigger than the power output from the power grid. Since the charging stations are not being used for charging all the time, the energy supply from the grid can be stored in battery so that you can output the energy at a much higher power into the electric vehicles and machineries. You fulfill your need with a power connection at a much lower rate from the grid. It takes time to apply for a power connection from the electric grid, and you normally do not get the power rate that you want because of shortage in local distribution and local electricity supply. You also need to pay for a higher power connection while a much lower connection is enough based on our energy aggregate solution.

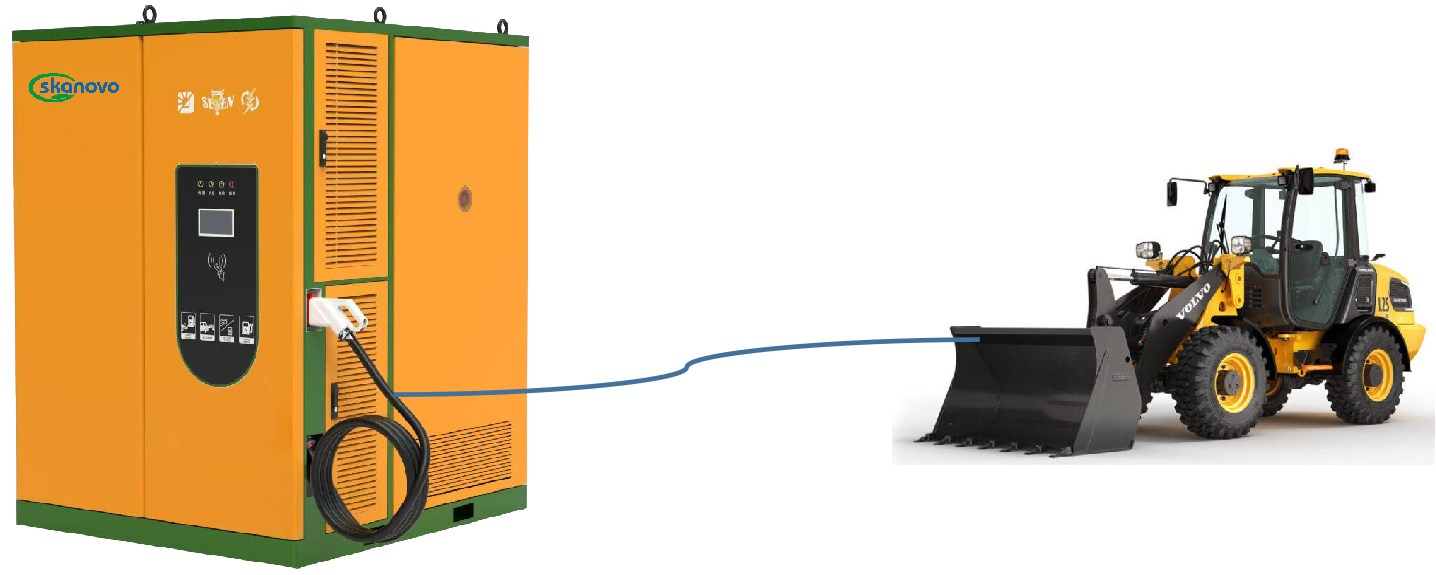

Application scenario
Product models
CA150 | CA250 | CA500 | |
Battery capacity | 156kwh | 261kwh | 522kwh |
Rated power | 80kw | 125kw | 250kw |
Depth of discharge | ≤95% | ≤95% | ≤95% |
Cycles | >8000 | >8000 | >8000 |
Cell type | 3.2V/314Ah(LFP) | 3.2V/314Ah(LFP) | 3.2V/314Ah(LFP) |
Battery module setup | 1P52S | 1P52S | 1P52S |
Battery system setup | 1P156S | 1P260S | 2P260S |
Rated voltage | 499V | 832V | 832V |
Maximum charging voltage | 555V | 949V | 949V |
Cut-off discharging voltage | 390V | 650V | 650V |
PCS rated power | 100kw | 100kw | 100kw |
Input voltage AC | 3~ 400VAC | 3~ 400VAC | 3~ 400VAC |
Input frequency AC | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Input connector AC | CEE 3~, 63A | CEE 3~, 63A | CEE 3~, 125A |
Input connector DC | CCS2 | CCS2 | CCS2 |
Output connector AC | CEE 3~ 126A, 63A, 32A; CEE 1~ 16A | CEE 3~ 126A, 63A, 32A; CEE 1~ 16A | CEE 3~ 252A, 126A, 63A, 32A; CEE 1~ 32A |
Output power AC | 80kw | 80kw | 160kw |
Installation | mobile | mobile | mobile |
IP rating | IP 54 | IP 54 | IP 54 |
Operating temperature | -35°C ~ +55°C | -35°C ~ +55°C | -35°C ~ +55°C |
Cooling method | liquid cooling | liquid cooling | liquid cooling |
Noise | ≤ 50 dB | ≤ 50 dB | ≤ 50 dB |
Relative humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% |
Network connection | 4G, Wi-Fi, Ethernet | 4G, Wi-Fi, Ethernet | 4G, Wi-Fi, Ethernet |
Enclosure | Cabin | Cabin | Cabin |
Dimension | 1500x1500x1600cm | 1500x1500x2100cm | 1500x2000x3000cm |
Weight | 1900kg | 2500kg | 3500kg |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection |
Charging features | |||
Output connector DC | CCS2 | CCS2 | CCS2 |
Output power DC | 100kw | 160kw | 280kw |
Output voltage for DC | 150~1000VDC | 150~1000VDC | 150~1000VDC |
No of charging pistol | 1 | 1 | 2 |
Cable length | 5 meter | 5 meter | 5 meter |
HMI | 7-inch touch screen | 7-inch touch screen | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time | Automatic full, fixed amount, fixed time | Automatic full, fixed amount, fixed time |
Payment method | Payment terminal, RFID card, Scan code, APP, VIN code | Payment terminal, RFID card, Scan code, APP, VIN code | Payment terminal, RFID card, Scan code, APP, VIN code |
Communication protocol | OCPP 1.6J | OCPP 1.6J | OCPP 1.6J |
Other features | Visualized charging progress display, Anti-corrosion galvalume housing | Visualized charging progress display, Anti-corrosion galvalume housing | Visualized charging progress display, Anti-corrosion galvalume housing |
