Liquid cooling fast charging system is for fast charging of heavy vehicles and machineries. This refers to the use of liquid cooling technology to set up a special liquid circulation channel between the charging cable and the charging connector. Liquid coolant for heat dissipation is added to the channel, and the coolant is circulated through a power pump to remove the heat generated during the charing process. The heat is taken away to increase the cable transmission power and achieve high-power charging. Compared with the traditional direct ventilation heat dissipation method, liquid cooling can completely isolate the inside and outside of the module, avoiding direct contact between internal electronic devices and external dust, salt spray, water vapor, flammable and explosive gases, and increase the protection level to IP55 with better security.

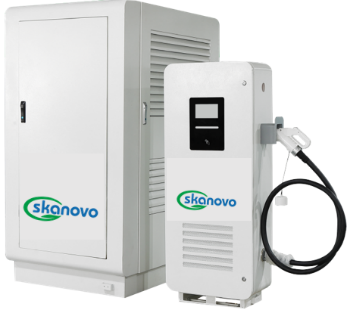

The fast EV charger has a central power stack with a few distributed charging terminals. This provides good flexibility for ground installation and planning. It connects with AC electric grid and provides an advanced charging solution for all kinds of electrical vehicles and trucks and heavy machineries. It comes with all kinds of protection mechanisms to ensure safety in the charging process. It provides Wi-Fi and 4G connectivity and supports OCPP for easy integration into any charging service operator. A color display provides real-time user-friendly charging information.
Product code: skn-dcxxx-Syyzz
xxx: rated power
yy: number of charging terminals
zz: number of charging outlets
Product model | skn-dcxxx-Syyzz |
Rated power kw | 600, 800, 900 |
No of charging terminals | 1, 2 |
No of charging outlets | 2, 4 |
Input voltage | 300~800VDC |
Output voltage | 150~1000VDC |
Cable length | 5 meter |
Charging connector type | CCS2 |
Installation | Ground installed |
HMI | 7-inch touch screen |
Charging mode | Automatic full, fixed amount, fixed time |
Payment method | Swipe card, scan code, APP, password, VIN code |
Network connection | 4G, Wi-Fi, Ethernet |
Communication protocol | OCPP 1.6 |
IP rating | IP 54 |
Operating temperature | -35°C ~ +55°C |
Cooling method | liquid cooling |
Noise | ≤ 50 dB |
Relative humidity | 5% ~ 95% |
Warranty and service | 2 or 3 years; extendable at a certain fee for every additional year; a monthly service fee for each outlet |
Safety and protection | Over and under voltage protection, overload protection, current leakage protection, over temperature protection, grounding protection, lightening surge protection |
Other features | Automatic load balancing between charging outlets, Visualized charging progress display, Anti-corrosion galvalume housing |
